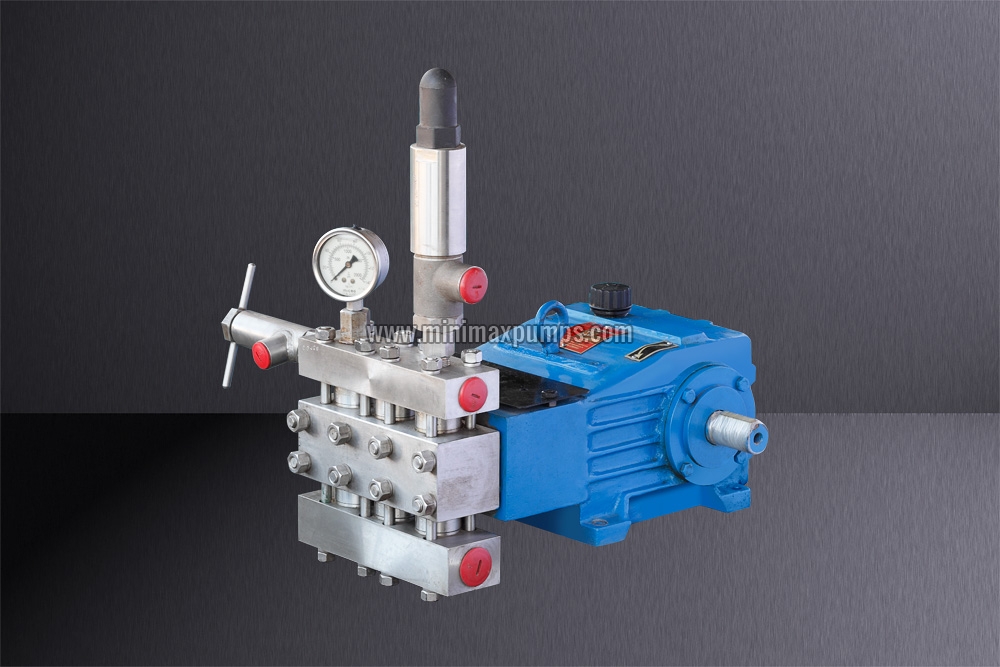

Plunger Type Pump (MP-60)

Plunger Type Pump (MP-60)

We bring forth technically advanced Plunger Type Pump (MP-60) for our esteemed clients. Plunger Type Pump (MP-60) is an endeavor of our dedicated engineers ensuring smooth performance and low operating cost. Further, our Plunger Type Pump  is able to meet expectations of end users owing to its efficiency and longer functional life.


  • High flow rates of 0-700 liters/hr
  • Easily compatible with most of the fluids
  • Steady state metering accuracy of +/-1 % of pump output
  • Single setting of stroke from 10%-100% by interlocking mechanism
  • Reproducibility (Repeatability) better than + /- 2.5% of set point
  • Positive return of plunger and variable stroke mechanism allows linear relationship between control stroke setting and stroke length
  • Low NPSHR requirement Simplex and Multiplex arrangements of pumps with common drive available for universal use
  • High pressures of 200 Kg/sq. cm


Heating or cooling jackets for liquid head is also available for highly viscous at room temperature Liquid contact materials (Wetted parts) :

  • AISI 304
  • AISI 316
  • Monel
  • Alloy 20
  • Hast alloy B
  • Polypropylene
  • Hast alloy C
  • Titanium
  • GFT


Type Plunger Pump
Certification CE Certified
Application Agrictulture, Automotive, Industrial
Weight 10-20kg
Power 10hp
Driven Type Electric
Pressure High Pressure, Low Pressure, Medium Pressure
Warranty 1year
Automation Grade Semi Automatic

  • Image 01

    Image 01
  • Image 02

  • Image 03

  • Image 04
